profiled & postformed panels

Multiform™ is Starbank’s dedicated range of profiled and postformed panels. We can provide you with standard profile edge details for various thicknesses of material, as well as both external and internal postformed panels.

HPL and thermoplastic PVC are our most common type of decorative face material that we use for our Multiform panels. We have a choice of substrates we can use to meet all budget and project requirements.  To find out more, see our material guide.

We are able to offer you standard worktop profiles that cover a wide range of applications. However, as a bespoke fabricator, we are always willing to work with you to help try and create something specific for your project (subject to material and fabrication limitations).

Due to material and manufacturing tolerances we are not able to guarantee matching profiles for applications over the maximum single length (3000mm for HPL). Please state at the time of ordering if sections are to be jointed.

htm63 postformed worktop
Multiform postformed panels

applications

Multiform – postformed and profiled panels encompasses furniture and fit-out products, such as:

  • Profiled tabletops
  • Vanity worktops
  • Pharmaceutical worktops and window sills
  • HTM63 grade worktops for healthcare environments
  • Laboratory worktops
  • Baby changing units
  • Postformed wall panels
  • Postformed duct panels
  • Leisure facility worktops

The composition of Multiform panels lends themselves to dry environments with light traffic. We offer two composition varieties within our multiform range to help supply you with the correct type of panel for your intended environment, see our compositions below.

However, If you require postformed panels to use in wet, humid environments, yet still cost effective, then take a look at our Aquaform® specialist postformed panels.

postformed baby changing unit

compositions

composition of multiform traditional postformed panel
traditional

Traditional Multiform panels are comprised using a moisture resistant MDF or chipboard core and finished with a decorative HPL or thermoplastic face. We recommend our traditional panel composition for:

  • light traffic
  • dry applications only
composition of multiform durable postformed panel
durable

Durable Multiform postformed panels are fabricated by using sections of SGL / CDF core pieces that are finished with a decorative HPL or thermoplastic face, to give the appearance of one single postformed sheet. We would recommend the durable panel composition for:

  • medium traffic
  • dry applications only
composition of ultimate multiform post formed panel
ultimate

Ultimate Multiform panels are fabricated from solid surface. consequently, these vanity units can be fabricated with integral sinks, up-stands and down-stands (where required) with inconspicuous joint lines. We recommend our ultimate panel composition for:

  • high traffic
  • wet, dry & humid applications

profile edge details

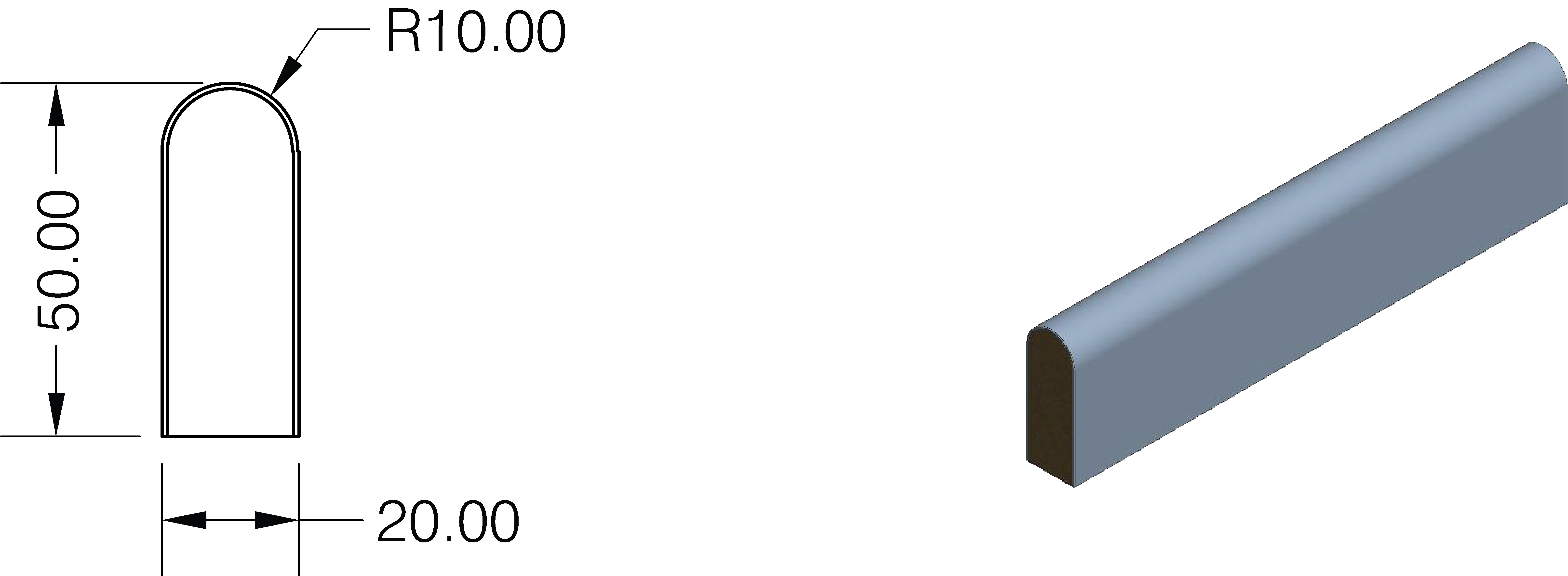

If it isn’t a full postformed worktop that you are after, but you want something more than just a cut and edged panel, then choose from our standard Multiform profile edges. Use the tabs below to view our standard range.

Radius’ are dependant on material thickness. They will be produced to Starbank standards unless otherwise confirmed during the order process. Starbank standard radius’ are:

  • 18mm core – 10mm radius
  • 25mm core – 12mm radius
  • 30mm core – 15mm radius
  • 38mm core – 15mm radius
  • 38mm core – 18mm radius
  • 50mm core – 25mm radius

standard postformed worktops

Below are all our standard Multiform worktop postformed profiles which cover a wide range of applications within all areas of the marketplace. We aren’t limited to these profiles, so please talk to our sales department if you require something more unique. Use the tabs below to view our standard Multiform range.

Due to material and manufacturing tolerances we are not able to guarantee matching profiles for applications over the maximum single length ( 3000mm for HPL & PVC, 3660mm for solid surface). Please state at the time of ordering if any sections are to be jointed.

Multiform brochure

To learn more about our standard profile and postformed panels, please take a look at our Multiform brochure . Or call our sales team today.
